How to: Rear Axle and Pinion Seal replacement (7.5 ring gear)

Hey all, I recently replaced all the seals in the rear end of my ranger. I thought I would throw up this how to as I had some issues that don't apply to the 8.8 ring gears.

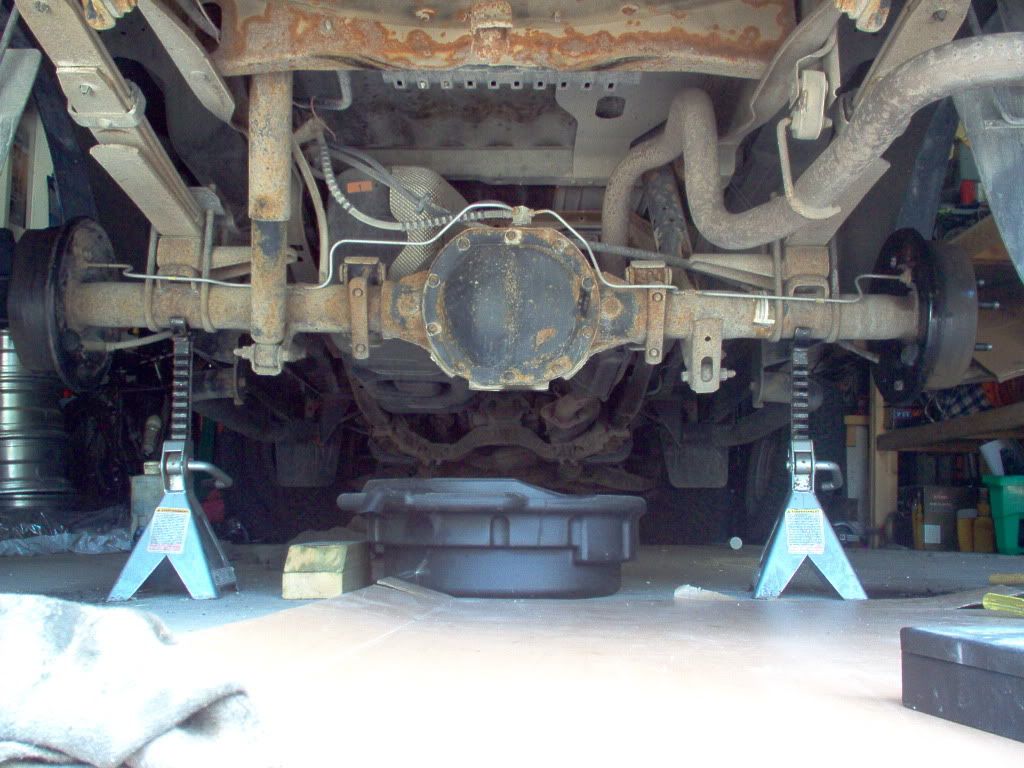

First loosen the lugs on the rear tires and raise the rear end putting it on axle stands, making sure to block at least one front wheel.



Lower the sparetire to give your self some extra room, remove the rear tires and brake drums.



Remove all but the top two bolts of the differential, the two top bolts undo about half way. Use a putty knife or some other tool that wont mar the surface of the diff, (I wouldn't recommend a screwdriver if you have other options) allow the diff fluid to drain into a pan.

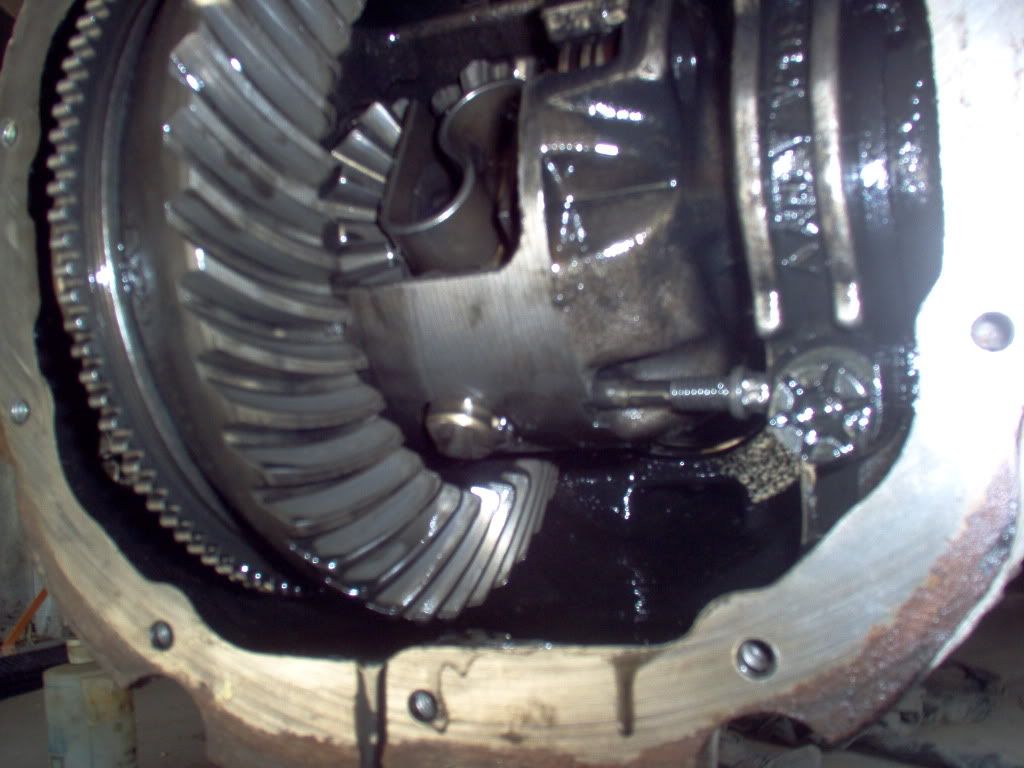

Put the truck in neutral and rotate the ring gear so the the retaining bolt and the pinion shaft are in the a postion that it can be loosened. Put the truck back in park or gear so that the gear will not move once shaft is removed (THIS IS CRITICAL DON"T FORGET THIS).



Using a 5/16th socket, undo the retaining bolt. Once it is loose use your fingers to back it out until it clears the pinion shaft. There is not enough remove to completely remove it on a 7.5 ring.



Once the bolt is loose the pinion shaft should come out with a little pressure.

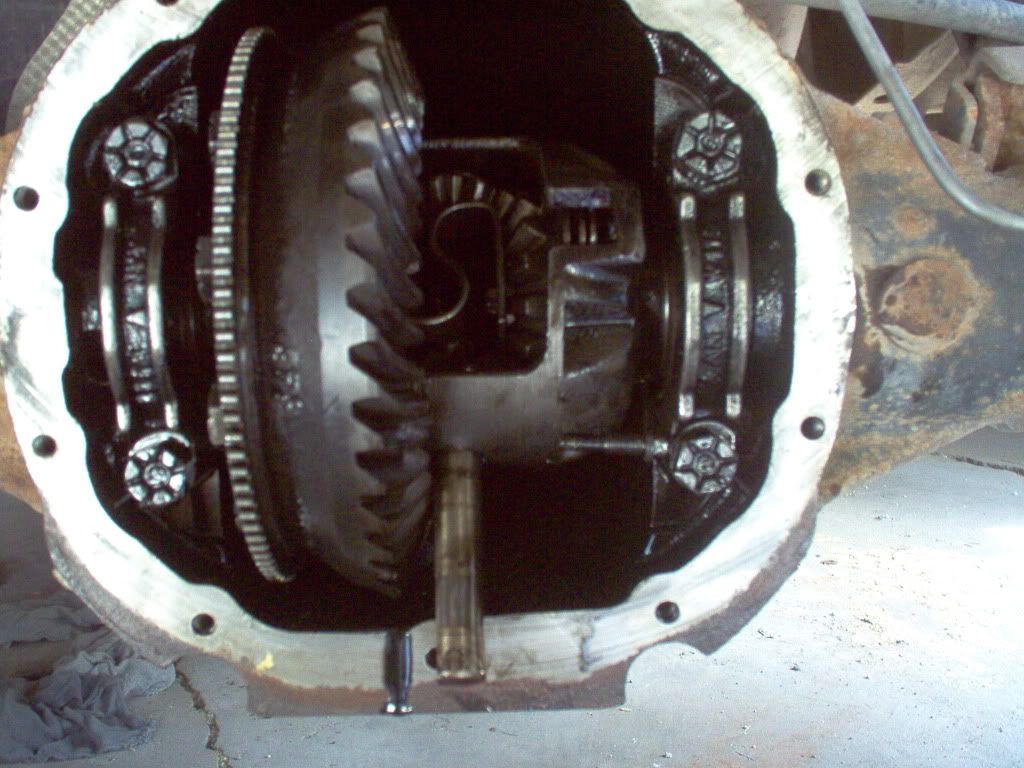

bring the pinion shaft down far enough to clear the axle shafts, The shaft will not clear the ring gear but it will allow room to move the axle shafts.



The axle shafts can now be pushed in allowing access to the retaining c-clips. The c-clips can be removed using pair of needle nose pliers or just pushed off with your fingers and remove from the bottom of the diff.

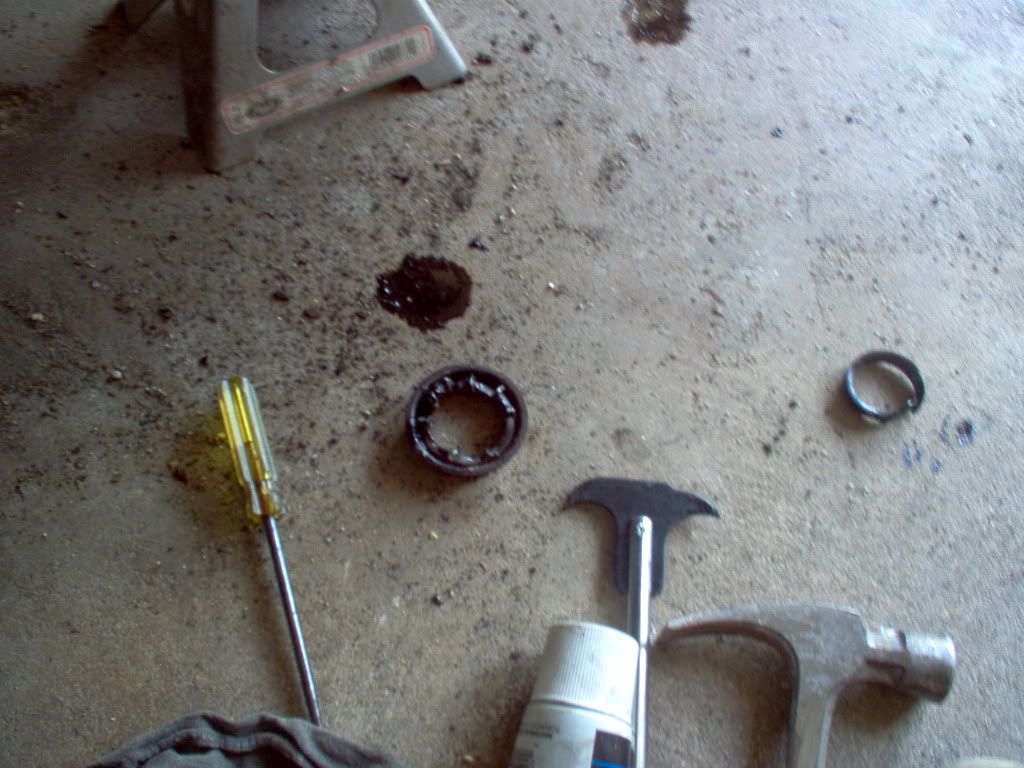

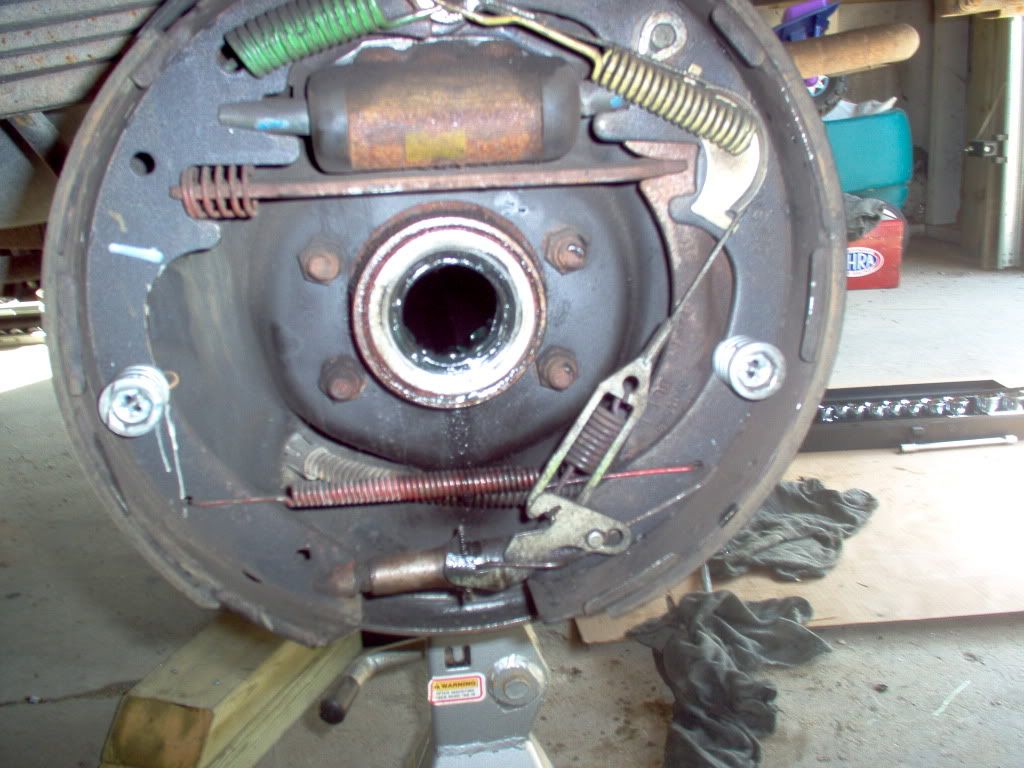

Remove the axle shafts and now the axle seals can be removed using a seal puller or flat screwdriver ( Make sure to pry on the seals and not on the bearings).





The new seals can now be installed using a bearing installer or a socket large enough to fit the case only of the seal. Gently tap the seal into place until it is flush with the axle housing. Since you are in there already give your axle bearings a light repacking of grease.

You can now push the pinion shaft back in for the moment so that nothing will move.



You can now re-install the axle shafts gently rotating it until it goes through the splines, with both axles in now remove the pinion shaft again so the c-clips can be re-installed. The clips can be pushed back on with your fingers. Once the c-clips are on gently pull back on the axle shafts to reseat them. The pinion shaft and retaining bolts can be re-installed.

If your axle seals were leaking I would replace the brake shoes at this time. Also be sure to clean your brake drums very well with brake cleaner, having them reground wouldn't hurt either. My drums had a big gouge in them so I just replaced them. Put your tires back on and lower the truck back down.

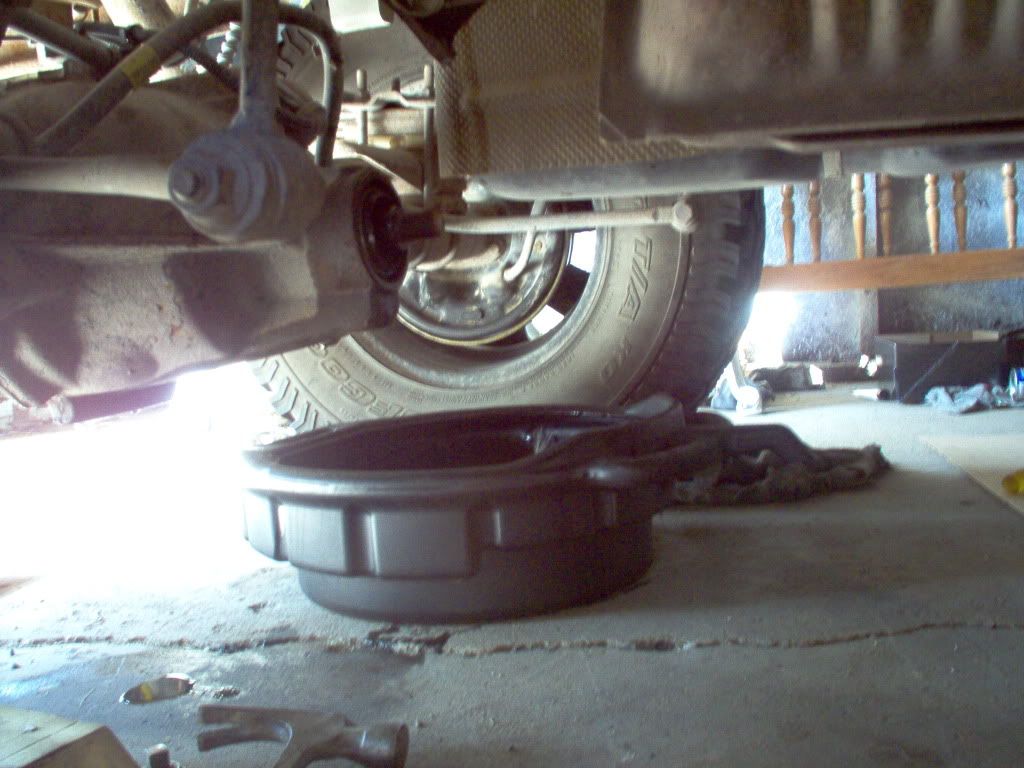

Axle seals are now done, and on to the pinion seal. Mark the axle flange and the pinion flange with a paint marker so they can be realigned properly later.



Mark the pinion flange and axle housing to line them up later. Tie up the axle shaft so it is out of your way. Mark the orientation of the pinion nut and pinion shaft.
Using a depth guage measure the depth of the pinion shaft protruding from the pinion nut (mine measured at 5 mm). Using a 1 1/16th socket remove the pinion nut and gently tap the pinion flange. With the pinion flange removed check the condition of the crush sleeve replace if neccessary. Remove the old seal with a seal puller.





Install the new seal, gently tap it back into place until it is fully seated. Reinstall the pinion flange making sure all marks line up. Tighten the pinion nut until the marks are lined up at the depth you measured earlier. Reinstall the axle flange to the pinion flange lining up the marks.

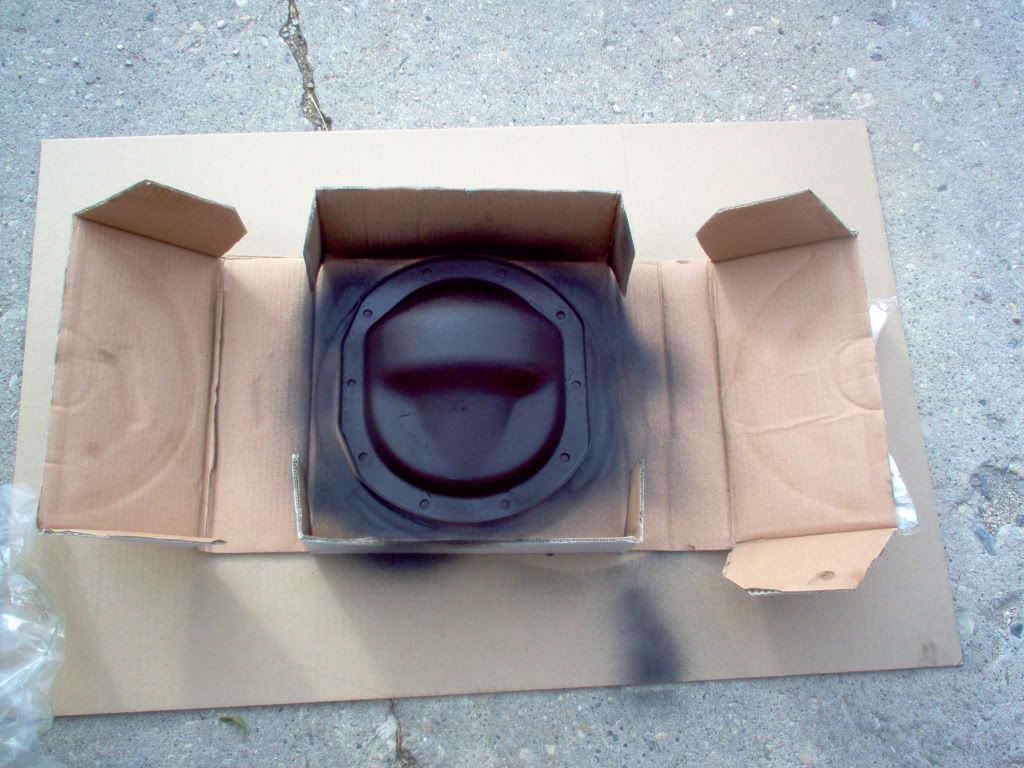

Now its a good time to give the diff cover a shot of paint. I cleaned the housing very well, I gave it a light sanding and shot it with two coats of spray on bedliner.

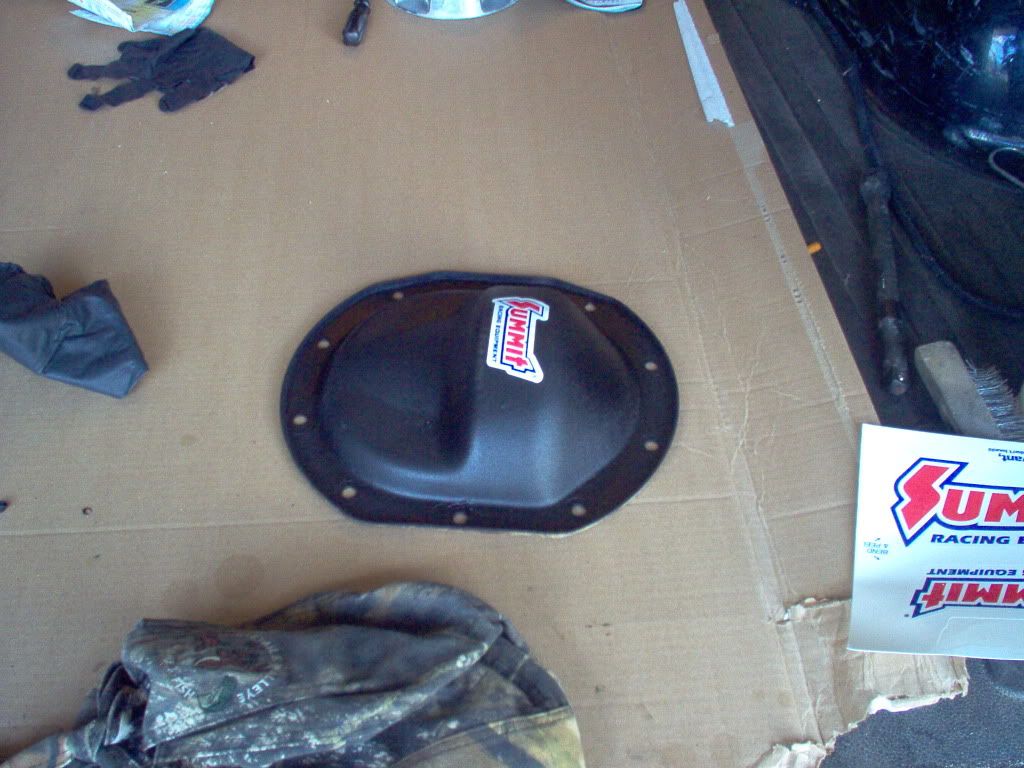

For shits and giggles I tossed on a summit sticker I had laying around.

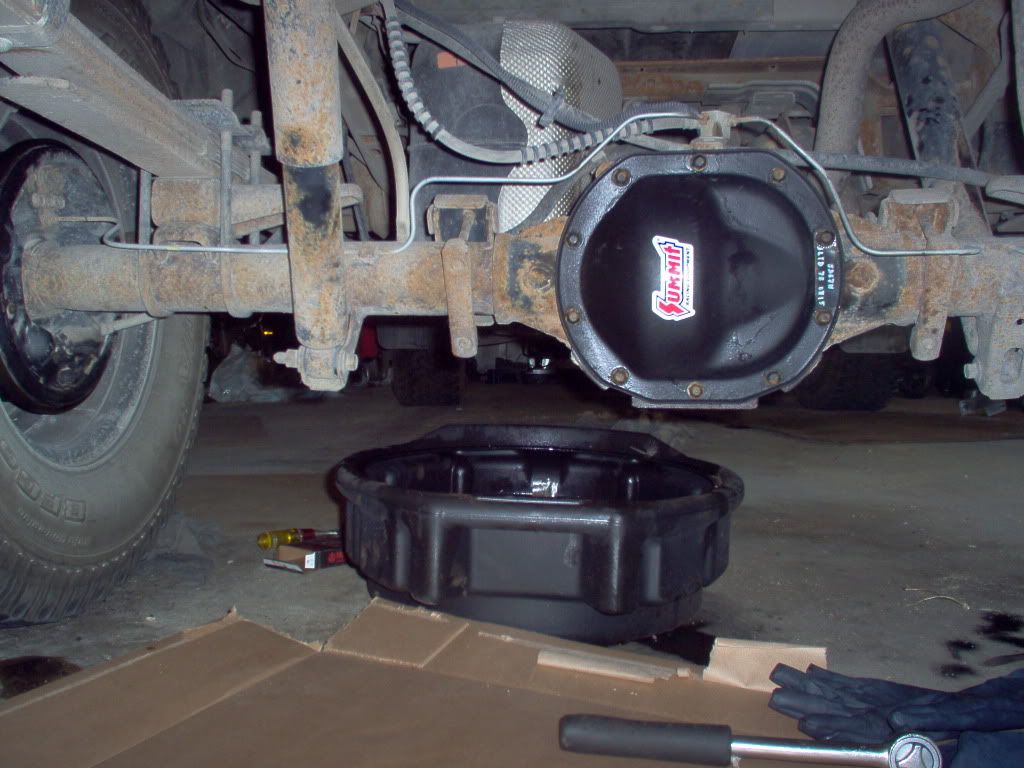

Once everything is dry its time reinstall the diff cover. Using black RTV silicone gasket maker apply a thin layer of gasket material over the entire mating surface of the diff cover, apply a 1/4" bead all the way around the insides of the boltholes.



Reinstall the diff cover installing the bolts finger tight in an alternating pattern. Allow the gasket to setup for about 1/2 an hour but no longer than an hour. Tighten the gasket down in an alternating pattern making sure not to overtighten the bolts as that may warp the diff cover. I also touched up the axle tag with the paint marker.



Allow the gasket to setup for a little while longer then you can refill the diff. the fill hole is on the drivers side just below the flange, it can be removed with a 3/8th ratchet extention. The 7.5 axle takes about 2.25 liters to fill.

You are now done and I would recoomend tossing whatever clothes you were wearing and the diff fluid stinks and the smell doesn't come out easy, so don't wear anything you want to keep.

jdcrush is offline
Sponsored Links
Advertisement

post #2 of 9 (permalink) Old 08-20-2010, 02:52 PM

shelbyx1's Avatar

Join Date: Oct 2008
Location: bonnyville alberta
Posts: 2,401
very good write up,but don,t forget if you have limited slip to also use additive or your clutches will make noise and wear faster.


a moments silence for the shelbyx,i hope her new owner enjoys as much.
shelbyx1 is offline
post #3 of 9 (permalink) Old 08-20-2010, 03:08 PM

Lone Ranger's Avatar

Join Date: Jul 2008
Location: Fernridge, BC
Posts: 712
Send a message via MSN to Lone Ranger
For doing pinion seals, if you don't have air tools to remove it I always found it easier to do with the tires on the axle and the truck on the ground, so that the pinion can't rotate. I also always have the best naps when I'm laying under the truck so its kinda two fold for me. LR

Matt T.

'09 Ford Ranger FX4 with a mean owner
Lone Ranger is offline

post #4 of 9 (permalink) Old 08-20-2010, 05:25 PM

b4000's Avatar

Join Date: Feb 2009
Location: Northeastern BC
Posts: 996
Nice write-up!

If Princess Auto were a real girl, I'd ask her to marry me.
b4000 is offline
post #5 of 9 (permalink) Old 08-20-2010, 07:22 PM Thread Starter

jdcrush's Avatar

Join Date: Apr 2008
Location: Winnipeg
Posts: 786
Send a message via MSN to jdcrush Send a message via Yahoo to jdcrush
Quote:
Originally Posted by Lone Ranger View Post
For doing pinion seals, if you don't have air tools to remove it I always found it easier to do with the tires on the axle and the truck on the ground, so that the pinion can't rotate. I also always have the best naps when I'm laying under the truck so its kinda two fold for me. LR
Yeah I did the same thing there was no way I was armstronging that bolt until the tires were on the ground.

If any else sees anything else I forgot to mention please post it up as this is a PIA job and there cant be to much info.

I need to go back through my books and post the proper torque specs.

jdcrush is offline
post #6 of 9 (permalink) Old 08-21-2010, 04:43 AM

Lone Ranger's Avatar

Join Date: Jul 2008
Location: Fernridge, BC
Posts: 712
Send a message via MSN to Lone Ranger
Specs are a good thing to list for sure. For those who are iffy on this, if you have any basic knowledge of tools and mechanics, you can do both these jobs. I've done both sets of seals on both 7.5" and 8.8" axles and its straight forward, easier than a Toy 8" (because you have to unbolt the brake backing plates which required bleeding the brakes, and I hate brakes). Don't be shy to do it, not much that can be screwed up in there.

The only major word of caution I have is be VERY careful undoing the retaining bolt, they're not hard to break and that makes a simple job turn into a shtty job. Use heat if you feel like it (but not too much), and don't go pulling on it any harder than necessary. Its all hardened steel so extracting bolts in a diff is a real pain. It'd probably be easier at that point to source out an 8.8" and just do a swap... LR

Matt T.

'09 Ford Ranger FX4 with a mean owner
Lone Ranger is offline
post #7 of 9 (permalink) Old 08-22-2010, 01:25 PM Thread Starter

jdcrush's Avatar

Join Date: Apr 2008
Location: Winnipeg
Posts: 786
Send a message via MSN to jdcrush Send a message via Yahoo to jdcrush
I wanted to do a swap but most of the yards wanted a ridiculous amount. I thought I had a 7.5 with 4.10s and only 45 km on it. Unfortunately the dummy couldn't read an axle tag right.

jdcrush is offline
post #8 of 9 (permalink) Old 08-22-2010, 02:17 PM

Northern Supercrew's Avatar

Join Date: Jan 2008
Location: watson lake, yukon
Posts: 4,280
Send a message via MSN to Northern Supercrew
Very nice write up Jason. I've never done a pinion seal yet, but have replaced a few rear axle seals on our old Expy..Thanx for helping any members that are thinking of doing these jobs.

2013 f150 Ecobeast
3.55 E locker
FX4 Screw
SSI tuned!!!!!!!!!!!!!!!!!
Northern Supercrew is offline
post #9 of 9 (permalink) Old 08-22-2010, 02:56 PM

Lone Ranger's Avatar

Join Date: Jul 2008
Location: Fernridge, BC
Posts: 712
Send a message via MSN to Lone Ranger
There's nothing wrong with the 7.5s, I've run two and one was welded with 4.10s (or possibly 4.56s) and 31s. They obviously won't hold up to hardcore rockcrawling but they hold their own for the most part. You just have to be a little careful of the crosspin, that's what tends to break in them. For the most part, the 28 spline 8.8 and 7.5 diffs are the same thing anyways. LR

Matt T.

'09 Ford Ranger FX4 with a mean owner
Lone Ranger is offline
